When setting up columns within a window on the Dashboard/Home page, users can:
· Change the order
· Reset columns to their default order
· Restoring a hidden column to view
To change the order of the columns within a window on the Dashboard/Home page:

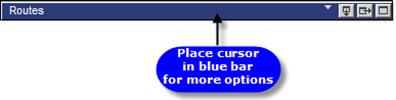

1 Hover the mouse in the blue bar of the window until the following optional buttons appear:
· Customize
· Reset
· Advanced Find
· Show All
· Auto Hide &endash; click this button to hide the additional options shown below. By default, the additional options are shown.
· The + and &endash; buttons expand or collapse additional options under each button on the Routes menu bar.
· The Find button was removed when using Backend Paging. If Backend Paging is used, then the Find button will show on this bar.
2 Click Customize. The Table view becomes a Column Header view.

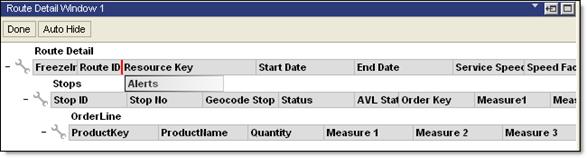

3 Within the Column Header view, select a column header (for example, Alerts) and drag it to the desired location on the column heading line.
4 Drag the column header until a red vertical bar appears in the new location:
5 Release the mouse button. In this example, the column header &endash; Alerts &endash; now appears between the column header Route ID and Resource Key.
6 If the Done and Auto Hide buttons do not appear, place the tip of the mouse on the bottom tan border of the Routes window to make the options appear.
7 To save this column, click Done.
Or
Press the ESC key to restore the column to its original text, and then click Done.
To reset columns to the default order within a window on the Dashboard/Home page:
1 If the additional options (Customize, Reset, Advanced Find, Show All, Auto Hide) are not visible, hover the mouse on the bottom (tan) border of the window until the additional options appear.
2 Click Reset. The columns revert to their default settings.
To remove an unwanted column from the list area within a window on the Dashboard/Home page:
1 If the additional options (Customize, Reset, Advanced Find, Show All, Auto Hide) are not visible, place the mouse within the blue portion of the window until the additional options appear.
2 Click Customize. The Table view becomes a Column Header view.
3 In Column
Header view, click

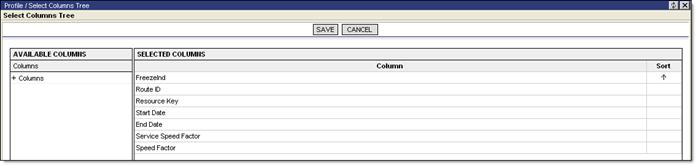

(wrench icon). The Select Columns
Tree page appears.
4 Under the Available Columns, click the + sign next to Columns. The Columns table expands to show all available columns.
Ü Note&emdash; Column labels in the Selected Columns section of the page have an asterisk (*) adjacent to it in the Available Columns section.
5 To remove a selected column, drag and drop it back into the Available Columns section of the page.
6 To save the change and return to the Column Header view, click Save; otherwise click Cancel.
7 To return to the Table view, click Done.
To restore a hidden column within a window on the Dashboard/Home page:
1 If the additional options (Customize, Reset, Advanced Find, Show All, Auto Hide) are not visible, place the mouse within the blue portion of the window until the additional options appear.
2 Click Customize. The Table view becomes a Column Header view.
3 In Column
Header view, click (wrench icon). The Select Columns
Tree page appears.
4 Under the Available Columns, click the + sign next to Columns. The Columns table expands to show all available columns.
Ü Note&emdash; Column labels in the Selected Columns section of the page have an asterisk (*) adjacent to it in the Available Columns section.
5 To add a column, drag and drop the column name(s) onto the Selected Columns section.
6 To save the change and return to the Column Header view, click Save; otherwise click Cancel.
7 To return to the Table view, click Done.
To rename a column header within a window on the Dashboard/Home page:
1 If the additional options (Customize, Reset, Advanced Find, Show All, Auto Hide) are not visible, place the mouse within the blue portion of the window until the additional options appear.
2 Click Customize. The Table view becomes a Column Header view.
3 In Column Header view, click anywhere in the desired column header and edit the text appropriately.
4 If the Done and Auto Hide buttons do not appear, place the tip of the mouse on the bottom tan border of the window to make the options appear.
5 To save changes to the column header, click Done.
Or
Press the ESC key to restore the column to its original text, and then click Done.
