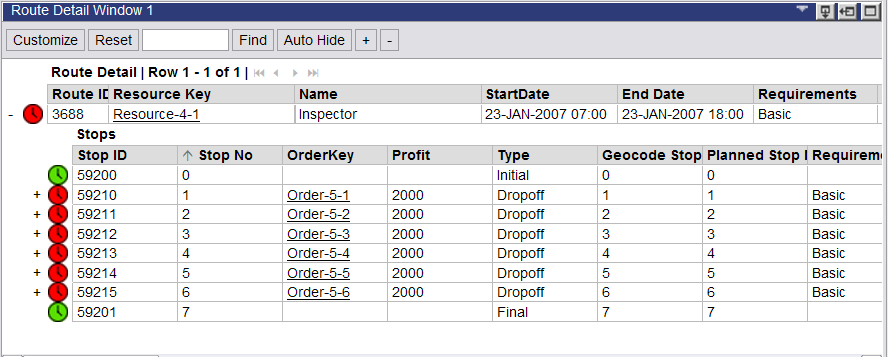

To view a Route in one of the two Details views, select a Route to view by either double-clicking it, or by selecting it and dragging it to one of the Route Detail quadrants.
Users should note the following regarding the Route Detail1 and Route Detail2 windows:
• Special instructions or comments to drivers are added using the UDFString1&ldots;9, UDF Integer1&ldots;3 and UDFNumber1&ldots;3 fields at the Route Detail level.
• The UnplannedInd field records unplanned orders such as unscheduled pickups or other services that need to be tracked on the fly. They are displayed as regular orders.
• Route Detail1 and Route Detail2 display the AutoCorrectGeocodeInd column, which indicates whether or not AutoCorrection of Geocoding is activated in Routing and Scheduling. See Configuring Geofencing for more information.
• Breaks and Rests are shown as a separate row in Route Detail1 and Route Detail2.
• Users can send Signature Captures from hand-helds to Routing and Scheduling. This signature capture is displayed as a hyperlink field in the Route Detail window at the stop level. Users can verify the signature stored in the database when clicked.
• Select the Find Customer Orders right-click option to display all orders that share the selected order’s Location Key or Company values.
